ELEVATORS, CONVEYORS & HOPPERS

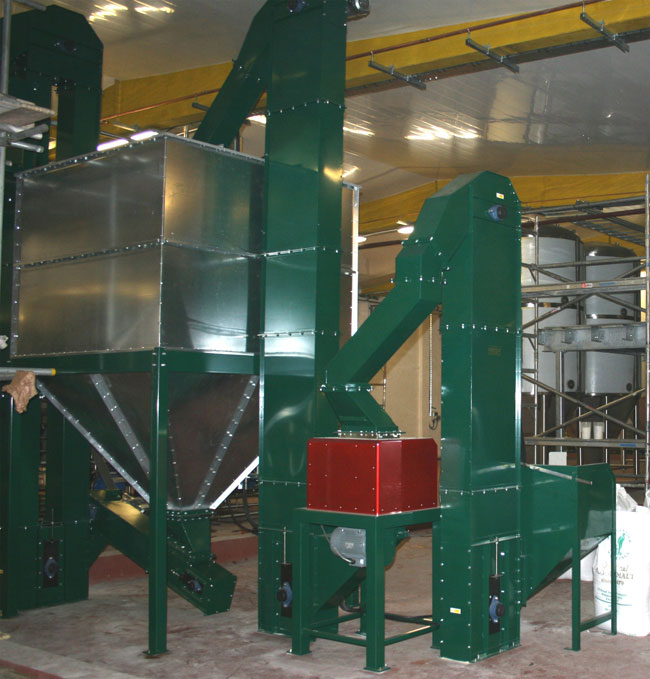

Elevators
The AR range of elevators have been specifically developed for the brewing and distilling industry, where gentle product transport is of paramount importance.
Maximum capacity and perfect fill ensuring minimum grist damage
achieved by purpose designed polypropylene buckets.
Smooth continuous running through the use of stretch resistant belting.
Maximum pick up and simple clean out enabled by the shoe attachment at the base of the elevator.
Stylish powder coated finish for protection, durability and aesthetics.
Explosion relief panels are available.
We are able to offer customers bespoke solutions for exact heights and movement of grain required.
Conveyors
The AR range of conveyors have been specifically developed for the brewing and distilling industry - design focus on dust containment and gentle product transport
AR Chain & Flight Conveyors
Superweave paddles for extremely quiet conveyor operation.
Gentle grist handling achieved through Superweave paddles.
Rapid yet gentle product transport.
Completely sealed to contain grist dust.
Robust, dependable design.
Stylish, durable, powder coated finish.
Suitable for a wide range of products.
Supplied with three-phase geared motors.

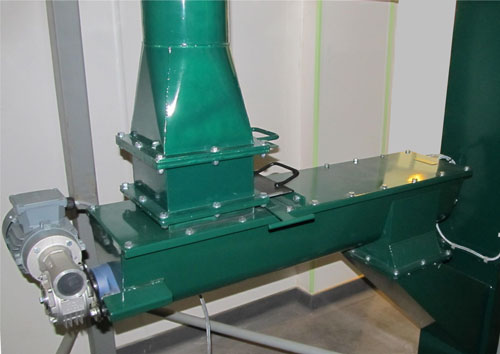

AR Screw Conveyors
Completely sealed to contain grist dust.
Robust, dependable design.
Stylish, durable, powder coated finish.
Suitable for a wide range of products.
Supplied with three-phase geared motors
Hoppers

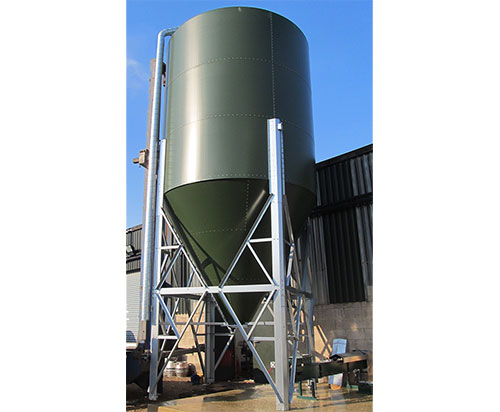

Bulk Storage Silos
Made from galvanised steel with the optional extra of a colour coated finish.
Available in a number of different sizes, up to 30 tonnes.
Able to receive malted grain which may be either blown in via a heavy-duty filler pipe or tipped into a reception hopper and transported by a fast elevator.
Complete with a gate valve shut off slide unit with the optional extra of a pneumatic shut off slide.

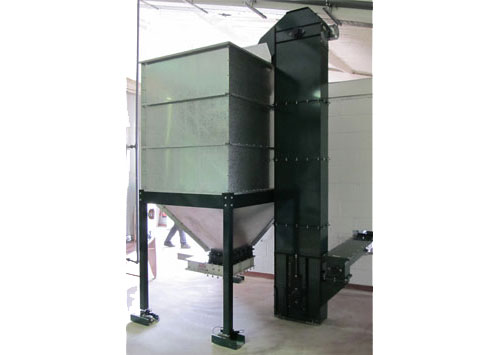

Malt Storage Bins
Designed and manufactured in house to customers requirements.
Made form galvanised steel with powder coated framework.
To receive grain via our conveying system.
Complete with metering and cut off slides, sealed lids and explosion vents.
Available with load cell kit with a digital read out to accurately measure the malt intake.
Load Cell Kits
We are able to offer load cell kits for all our hoppers to enable reliable, accurate weighing of malt.
Tipping Hoppers
Suitable for breweries or distilleries buying malt in sacks.
A manually fed hopper with a holding capacity of
approximately 100 kg of malt.
The tipping hopper is ideally fed into an AR elevator and
discharged into the control chute situated above the mill.
Grist Cases
Robust, durable construction.
Manufactured in galvanised steel.
60° hopper bottom for optimum product flow.
Stainless steel manually operated cut off slides.
Pneumatic slides available.
Explosion relief panels available.
Sealed dust lid included.
Bespoke designed and built to customer’s requirements.
Pneumatic Slides
Heavy duty construction
Suitable to be fitted to our complete range of hoppers

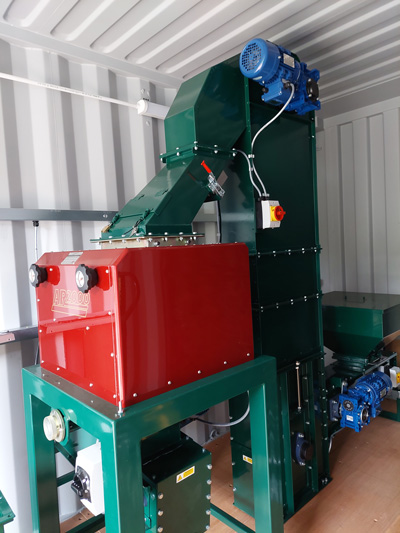

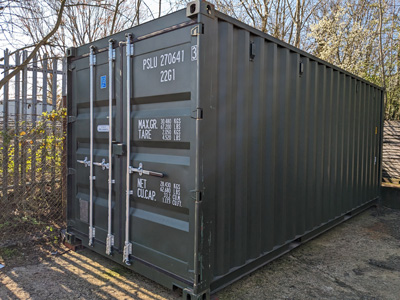

Container
20ft one trip shipping container
Able to house dry goods equipment when space inside the building is at a premium
A control panel can also be integrated into this system.
Control Panel
We are able to offer a control panel to control any equipment from the silo to the mash tun within the Brewery/Distillery.
