Malt Mills for Brewers & Distillers

PRECISION MALT MILLS

Crafted with only the highest grade materials and components, our wide range of technically designed mills are constructed to last. Built in the UK and engineered according to the highest British  engineering standards, our quality of workmanship is guaranteed.

Customised to suit your requirements, our low noise, precision adjustable mills deliver incredible grinding quality and are available in a combination or either, 2, 4, or 6 roll configurations. Our AR 2000 series (2, 4 or 6 roll configuration) has a milling capacity of up to three tonnes per hour, whilst our AR3000 series (4 or 6 roll configuration) can process up to an incredible ten tonnes per hour.



AR2000/175/2 PRECISION MILL

AR2000/175/2
Fully adjustable two roll mill with a milling capacity of 500kg/hr.



INCREDIBLE GRINDING QUALITY
Suitable for use with all malt varieties as well as unmalted grain.
High grade solid steel rolls for optimum performance — delivering maximum extract from the malt and grain.
Precision roll setting to within 0.05mm via dual analogue dials.
Rapid and reliable product quality checking via the integrated sample tube.



QUIET SMOOTH & RELIABLE OPERATION
Belt drive system eliminates the use of noisy gears.
Natural balance minimises vibrations and noise.
Top quality sealed bearings.



MAXIMUM SAFETY
Fully enclosed to eliminate the risk of product contamination and health hazards from grist dust.
All mechanical parts are totally guarded.
Complies with ATEX 94/9/EC.



MADE IN THE UK

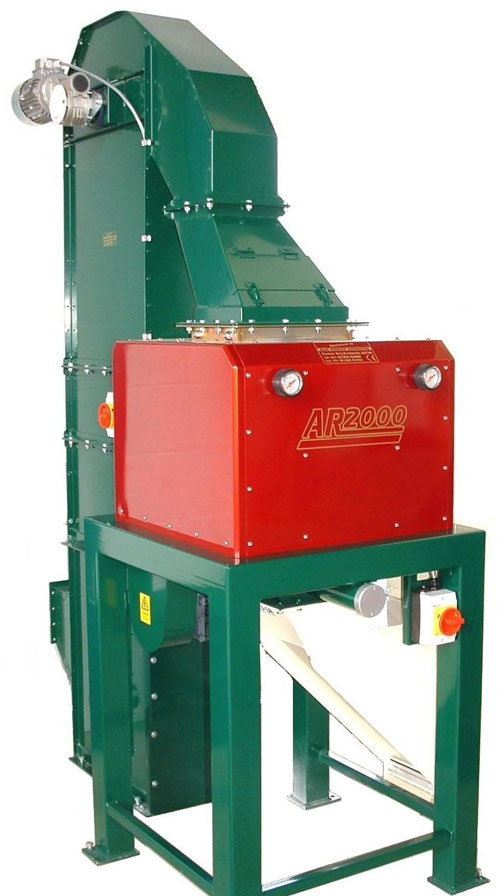

AR2000/300/2 PRECISION MILL

AR2000/300/2
Fully adjustable two roll mill with a milling capacity of 1t/hr.



INCREDIBLE GRINDING QUALITY
Suitable for use with all malt varieties as well as unmalted grain.
High grade solid steel rolls for optimum performance — delivering maximum extract from the malt and grain.
Precision roll setting to within 0.05mm via dual analogue dials.
Rapid and reliable product quality checking via the integrated sample tube.
Adjustable control chute for optimum material feed (extra)
Magnetised control chute to remove ferrous particles (optional)



QUIET SMOOTH & RELIABLE OPERATION
Belt drive system eliminates the use of noisy gears.
Natural balance minimises vibrations and noise.
Top quality sealed bearings.
70dB (reading at distance of 1 metre)



MAXIMUM SAFETY
Fully enclosed to eliminate the risk of product contamination and health hazards from grist dust.
All mechanical parts are totally guarded.
Complies with ATEX 94/9/EC.



MADE IN THE UK

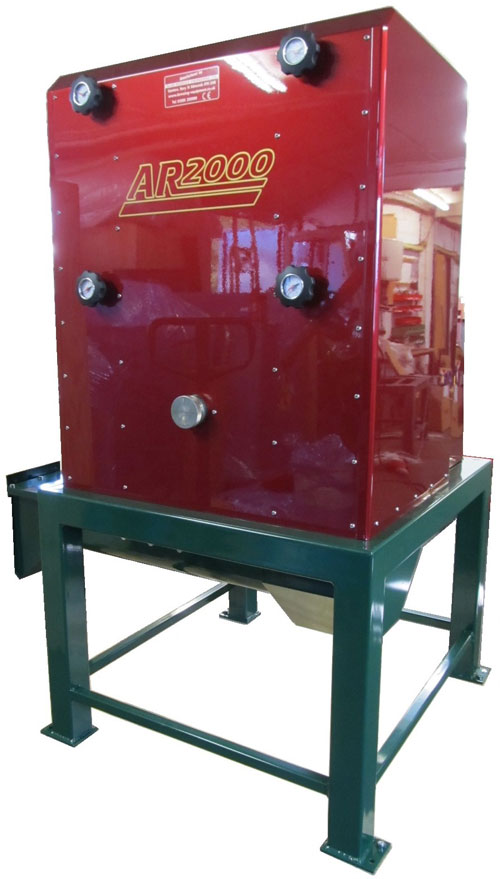

AR2000/450/4 PRECISION MILL

AR2000/400/4
Fully adjustable four roll mill with a milling capacity of 2t/hr.



INCREDIBLE GRINDING QUALITY
Suitable for use with all malt varieties as well as unmalted grain.
High grade solid steel rolls for optimum performance — delivering maximum extract from the malt and grain.
Precision roll setting to within 0.05mm via four analogue dials.
Rapid and reliable product quality checking via the integrated sample tube.
Adjustable control chute for optimum material feed (extra)
Magnetised control chute to remove ferrous particles (optional)



QUIET SMOOTH & RELIABLE OPERATION
Belt drive system eliminates the use of noisy gears.
Natural balance minimises vibrations and noise.
Top quality sealed bearings.
70dB (reading at distance of 1 metre)



MAXIMUM SAFETY
Fully enclosed to eliminate the risk of product contamination and health hazards from grist dust.
All mechanical parts are totally guarded.
Complies with ATEX 94/9/EC.



MADE IN THE UK

AR3000/600/4 PRECISION MILL

AR3000/600/4
Heavy duty four roll mill with a milling capacity of 3t/hr.



INCREDIBLE GRINDING QUALITY
Suitable for use with all malt varieties as well as unmalted grain.
High grade solid steel rolls for optimum performance — delivering maximum extract from the malt and grain.
Precision roll setting to within 0.05mm via four analogue dials.
Rapid and reliable product quality checking via the integrated sample tube.
Adjustable control chute for optimum material feed (extra)
Magnetised control chute to remove ferrous particles (optional)



QUIET SMOOTH & RELIABLE OPERATION
Belt drive system eliminates the use of noisy gears.
Natural balance minimises vibrations and noise.
Top quality sealed bearings.
70dB (reading at distance of 1 metre)



MAXIMUM SAFETY
Fully enclosed to eliminate the risk of product contamination and health hazards from grist dust.
All mechanical parts are totally guarded.
Complies with ATEX 94/9/EC.



MADE IN THE UK

FULL RANGE LIST

MODEL NUMBER OF ROLLS MILLING CAPACITY (t/hr) WEIGHT (KG) approx.
AR2000/175/2 2 0.5 189
AR2000/175/4 4 0.5 378
AR2000/300/2 2 1 233
AR2000/300/4 4 1 466
AR2000/375/2 2 1.5 269
AR2000/375/4 4 1.5 538
AR2000/450/2 2 2 329
AR2000/450/4 4 2 658
AR3000/600/2 2 3 398
AR3000/600/4 4 3 796
AR3000/600/6 6 3 1194
AR3000/760/4 4 4 840
AR3000/760/6 6 4 1260
AR3000/900/4 4 5 -
AR3000/900/6 6 5 -



Please call us for details on our larger capacity mills up to 10 t/hr

MADE IN THE UK

PRECISION ROLLER ADJUSTMENT

Adjust the roll gap with an accuracy of 0.05mm in seconds!

Head Brewers, Distillers and Maltsters throughout the country have long requested the need for accurate roll setting.
This has resulted in the one of the main design features that we incorporate in all our mills. With the facility to precisely set the rolls - simply operated by the turn of positive drive analogue dials - it is possible to acquire the exact setting. Hence the preferred grind is obtained, allowing for maximum extract from the malt.

One full 360 degree turn of the red hand is equal to 1mm of roll spacing
